410 is a basic martensitic stainless steel (≈12% Cr class) designed for applications that need higher strength, wear resistance, and moderate corrosion resistance compared with carbon steels. It is commonly supplied annealed or quenched & tempered to reach targeted hardness/strength levels for machined automotive components.

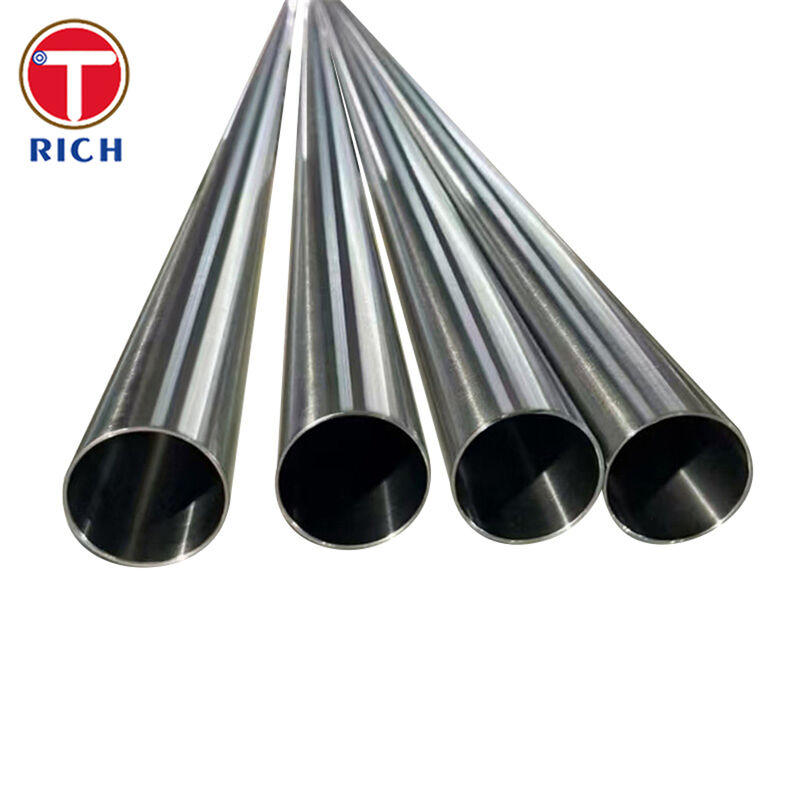

Product type: Martensitic stainless steel seamless pipe / tube
Typical supply condition: Annealed / Quenched & Tempered (as required)
Typical size range (customizable):
OD: 6–219 mm (or per drawing)
WT: 1–30 mm (or per drawing)
Length: fixed or random (commonly up to 6 m / 12 m)
End type: Plain / Beveled / Threaded (optional)
Surface: Pickled, polished, bright annealed, or as specified
Inspection/Documentation (optional): EN 10204 3.1 MTC, dimensional report, PMI, NDT
Heat-treatable strength: Can be hardened and tempered for demanding mechanical loads.
Wear resistance: Suitable for parts facing friction/abrasion (shafts, bushings, sleeves).
Moderate corrosion resistance: Performs well in mild atmospheres/fresh water; best when hardened and finished smooth.
Magnetic (ferromagnetic): Typical of straight-chromium martensitic grades.
Temperature capability (application-dependent): Often referenced with scaling resistance around ~650°C (typical guidance varies by condition and environment).
Chemistry & traceability you can audit
Each heat can be supplied with MTC (EN 10204 3.1) and full heat/lot traceability.
Optional PMI verification to confirm grade identity before machining or assembly.
Dimensional precision for machining yield
Automotive buyers often prioritize OD/WT consistency, straightness, and ovality to reduce scrap and improve CNC efficiency.
We support tight dimensional control with 100% dimensional checks (and reporting when requested).
Heat-treatment control & joining guidance
Martensitic stainless steels are performance-sensitive: hardness/strength must match the application, and welding requires correct procedures.
We can supply to targeted conditions (annealed or Q&T) and provide guidance such as preheating and post-weld heat treatment practices for 410 to reduce cracking risk.
| Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Mo (%) | Ni (%) |
|---|---|---|---|---|---|---|---|---|
| 410 (S41000) | 0.08–0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.5–13.5 | — | — |
| 420 (S42000) | ≥0.15 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 12.0–14.0 | — | — |
| 431 (S43100) | ≤0.20 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 15.0–17.0 | — | 1.25–2.50 |
| 416 (S41600) | ≤0.15 | ≤1.25 | ≤1.00 | ≤0.06 | ≥0.15 | 12.0–14.0 | — | — |
| 440C (S44004) | 0.95–1.20 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 16.0–18.0 | ≤0.75 | — |
| Grade | Condition | Tensile Strength (MPa) | 0.2% Yield (MPa) | Elongation (%) | Hardness (typical limit) |
|---|---|---|---|---|---|
| 410 | Annealed | ≥480 | ≥275 | ≥16 | — |
| 420 | Annealed | 655 | 345 | 25 | ≤255 HB |
| 431 | Annealed | 862 | 655 | 20 | ≤285 HB |
| 416 | Annealed | 517 | 276 | 30 | ≤262 HB |
| 440C | Annealed | 758 | 448 | 14 | ≤269 HB |
(Final execution standard depends on your service conditions and order requirements.)
ASTM: ASTM A268/A268M — seamless & welded ferritic/martensitic stainless steel tubing for general service
EN: EN 10297-2 — seamless stainless steel tubes for mechanical and general engineering purposes
GOST: GOST 9940 (hot-finished tubes) / GOST 9941 (cold-/warm-formed tubes)
JIS: JIS G3459 — stainless steel pipes
GB: GB/T 14976 — seamless stainless steel pipes for fluid transport; GB/T 13296 — tubes for boiler and heat exchanger
General fields: Automotive, mechanical engineering, pumps/valves, fasteners, wear-resistant parts.
Typical automotive uses :
Shafts & sleeves: steering/drive-related shafts, precision sleeves, bushings (wear + strength focus)
Fasteners & structural hardware: bolts, nuts, studs in moderate corrosion environments
Heat-adjacent components: selected exhaust/thermal hardware where strength + oxidation resistance are needed (service-condition dependent)
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
