مكان المنشأ:
تشجيانغ/الصين
اسم العلامة التجارية:
TORICH
إصدار الشهادات:
ISO9001 ISO 14001 TS16949
رقم الموديل:
أستم A513 4130
فيديو
فيديو

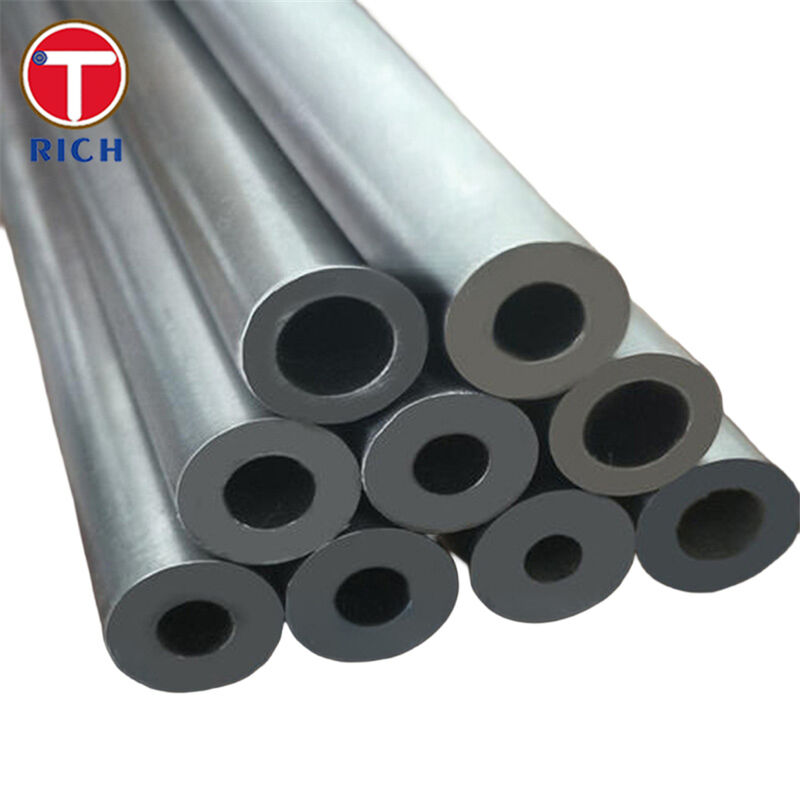

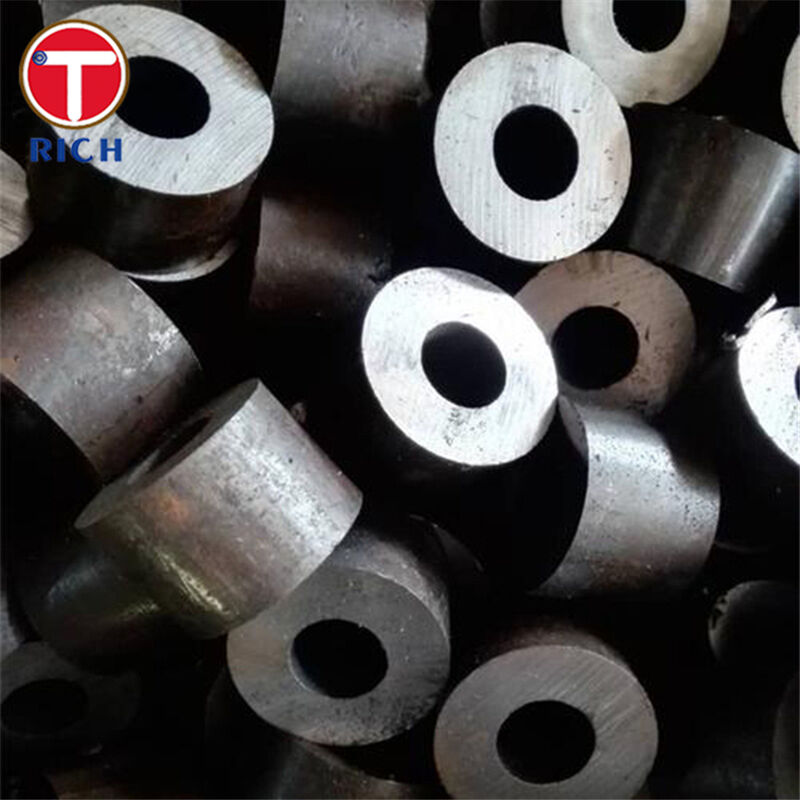

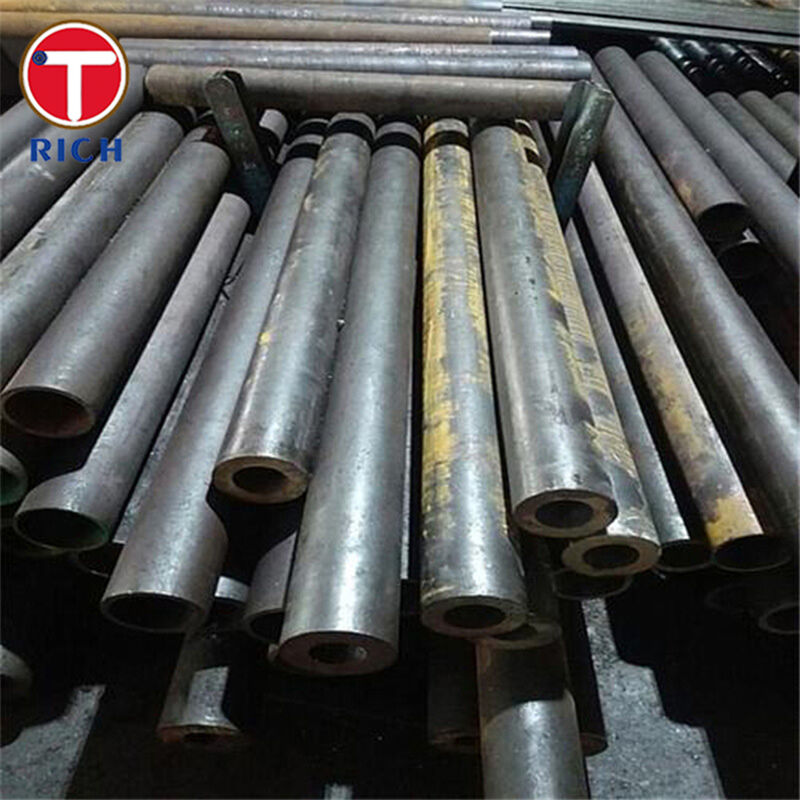

This product is ASTM A513/A513M Grade 4130 chromium–molybdenum (Chromoly) mechanical tubing manufactured by the ERW → Drawn-Over-Mandrel (DOM) → cold drawing route. ASTM A513 Type 5 DOM tubing is produced from electric-resistance-welded tube that is subsequently cold drawn over a mandrel to achieve high dimensional accuracy, improved concentricity, and a smooth bore (often described as “near-seamless” in finish, though it is not made from a solid billet).
Product form: Round / square / rectangular / special-shaped mechanical tubing (DOM)
Typical OD range: 6–219 mm (custom sizes available)
Typical wall thickness: 0.5–20.0 mm (custom thickness available)
Length: Random length or cut-to-length (as agreed)
Delivery conditions (common options): As-welded, normalized, DOM, DOM stress relieved
Surface: Black / oiled / bright (pickled & oiled), optional coatings on request
Precision OD/ID and improved concentricity after DOM cold drawing (excellent for machining and tight-fit assemblies)
Smooth internal surface & reduced wall variation, supporting stable performance in mechanical motion and load-bearing parts
4130 Chromoly strength-to-weight advantage, enabling lighter designs vs. plain carbon steels in many structural parts
Heat-treatable (normalized or quenched & tempered) to match required strength/toughness targets
Q1: “Is DOM really comparable to seamless for my application?”
A: DOM made to ASTM A513 is widely specified because its wall uniformity and concentricity are excellent, and its properties are often described as comparable to cold-drawn seamless of similar chemistry/size. For strict “true seamless” requirements, we can offer a seamless option by request (e.g., ASTM A519).
Q2: “Will I spend less time machining?”
A: DOM tubing is commonly chosen because its surface finish, straight bore, and minimized wall variation can reduce stock removal, shorten machining time, and improve yield on precision parts.
Q3: “Can you guarantee chemistry & traceability?”
A: We supply with heat/lot traceability and material test documentation aligned to the specified grade/standard. For critical projects, PMI/third-party inspection can be arranged.
Q4: “Is 4130 weldable, and how do we avoid cracking?”
A: 4130 is generally weldable, but process control matters. For demanding weldments, pre/post-weld heat treatment is commonly recommended to reduce cold-cracking risk and preserve toughness.
Q5: “What about corrosion—will it rust?”
A: 4130 is a low-alloy steel and typically needs surface protection in humid/chloride environments (oil, phosphate, paint, zinc, epoxy, etc.). For aggressive corrosion conditions, consider upgrading the protection system or switching to a corrosion-resistant alloy.
| Standard System | Grade | C (%) | Si (%) | Mn (%) | P (max, %) | S (max, %) | Cr (%) | Mo (%) | Ni (max, %) | Cu (max, %) |
|---|---|---|---|---|---|---|---|---|---|---|
| ASTM/SAE | 4130 (UNS G41300) | 0.28–0.33 | 0.15–0.35 | 0.40–0.60 | 0.035 | 0.040 | 0.80–1.10 | 0.15–0.25 | — | — |
| EN | 25CrMo4 (1.7218) | 0.220–0.290 | ≤0.400 | 0.600–0.900 | 0.025 | 0.035 | 0.900–1.200 | 0.150–0.300 | — | — |
| JIS | SCM430 | 0.28–0.33 | 0.15–0.35 | 0.60–0.90 | 0.03 | 0.03 | 0.90–1.20 | 0.15–0.30 | 0.25 | 0.30 |
| GB | 30CrMo | 0.26–0.33 | 0.17–0.37 | 0.40–0.70 | 0.03 | 0.03 | 0.80–1.10 | 0.15–0.25 | 0.30 | 0.30 |
| GOST | 30ХМА (30KhMA) | 0.26–0.33 | 0.17–0.37 | 0.40–0.70 | 0.025 | 0.025 | 0.80–1.10 | 0.15–0.25 | 0.30 | 0.30 |
| Grade | Example Delivery / Heat Treatment Condition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (example) |
|---|---|---|---|---|---|
| ASTM A513 4130 | DOM Stress-Relieved tubing | ≥620 | ≥550 | ≥10 | RB ≥87 |
| EN 25CrMo4 | Typical values (varies with HT) | 650–800 | ≥400 | 16–60 | As per HT |
| JIS SCM430 | Q&T (example condition shown in summary tables) | ≥930 | ≥785 | ≥12 | ≤229 HBW |
| GB 30CrMo | Q&T (example d=25 mm in summary tables) | ≥930 | ≥785 | ≥12 | ≤229 HBW |
| GOST 30ХМА | Q&T (example scope noted in summary tables) | ≥930 | ≥735 | ≥12 | — |
ASTM
ASTM A513/A513M — Electric-Resistance-Welded carbon/alloy mechanical tubing (incl. Type 5 DOM)
ASTM A519/A519M — Seamless carbon/alloy mechanical tubing (alternative when “seamless” is mandatory)
EN
EN 10083-3 — Quenched and tempered alloy steels (commonly referenced for 25CrMo4)
EN 10305-1 / EN 10297-1 — Precision / mechanical seamless tube routes (project-dependent)
GOST
GOST 4543 — Alloyed construction steels (commonly referenced for 30ХМА / 30KhMA)
JIS
JIS G 4053 — Low-alloyed steels for machine structural use (SCM grades; steel chemistry reference)
GB
GB/T 3077 — Alloy structure steels (commonly referenced for 30CrMo chemistry/properties)
Typical industries: Automotive & motorsport, aerospace support components, industrial machinery, agricultural/construction equipment, energy equipment, precision mechanical manufacturing.
Where it is used (examples):
Drivetrain & power transmission: shafts, sleeves, torque tubes, couplers
Structural mechanical parts: roll-cage members, frames, brackets, high-strength supports
Machined precision parts: bushings, pins, spacers, high-load housings (benefits from DOM concentricity)
Hydraulic / cylinder-related components: where tight ID tolerance or honed ID is specified (by agreement)
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
