مكان المنشأ:
تشجيانغ/الصين
اسم العلامة التجارية:
TORICH
إصدار الشهادات:
ISO9001 ISO 14001 TS16949
رقم الموديل:
أنابيب الصلب المقاوم للصدأ الطبية
فيديو

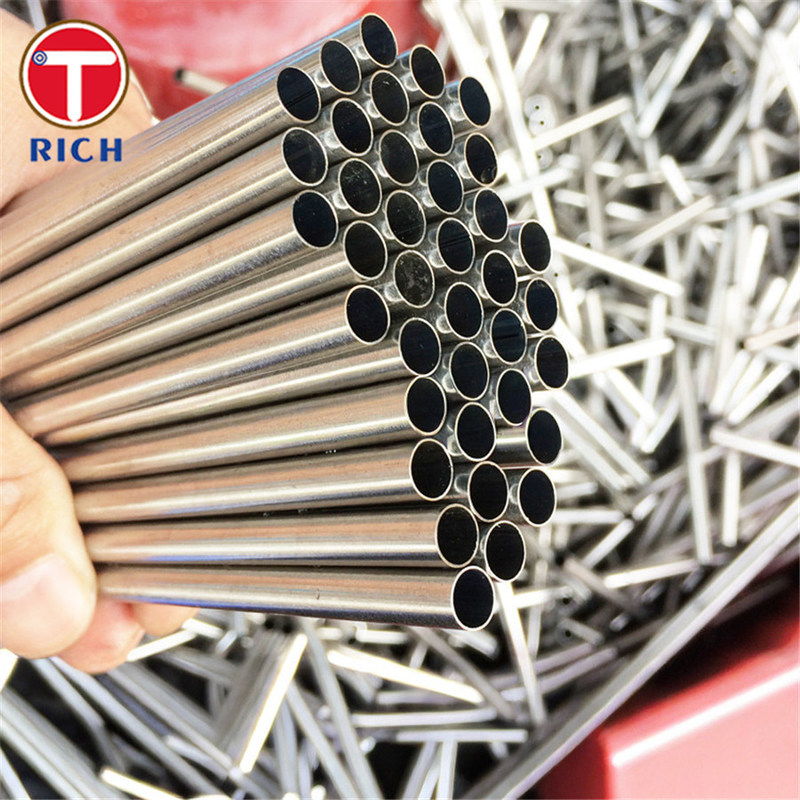

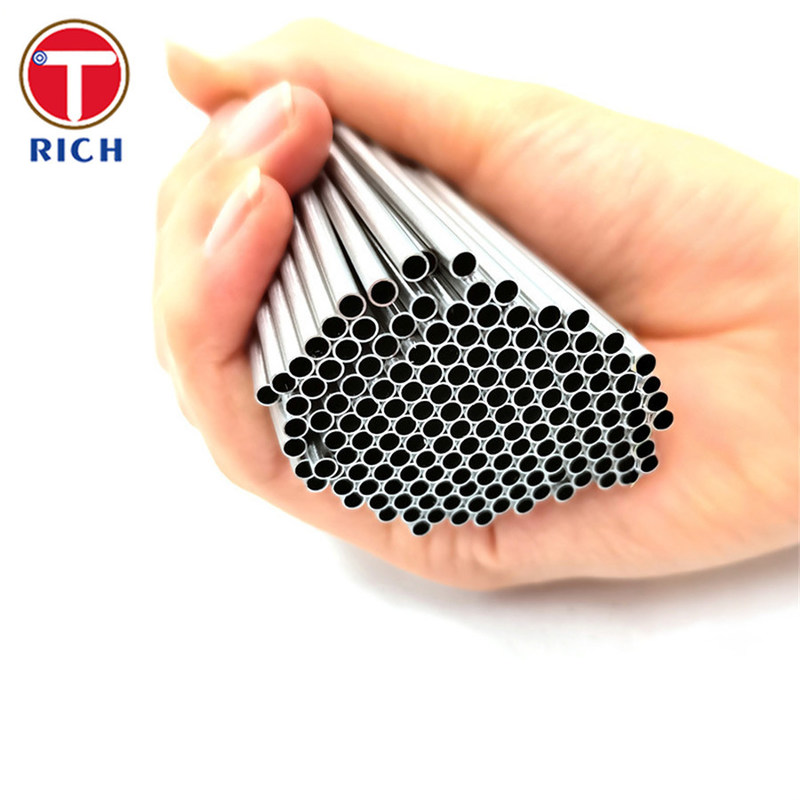

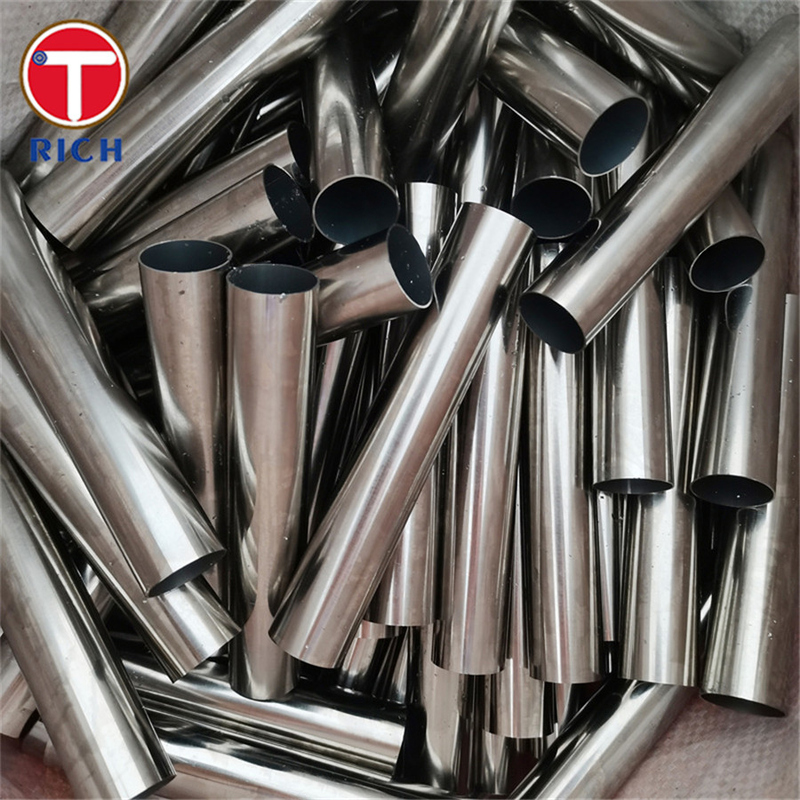

This product is a precision stainless steel small-diameter tubing designed specifically for medical devices. It is manufactured from medical-grade stainless steels such as 304/304L, 316/316L, and 17-7PH using cold-drawing or seamless production methods. The process ensures ultra-smooth surfaces, excellent dimensional accuracy, high structural integrity, and full biocompatibility.
Outside Diameter (OD): approx. 0.15 mm to 6 mm for miniature medical tubing
Wall Thickness: from about 0.025 mm and above
Dimensional Tolerance: OD and wall thickness tolerances can reach ±0.001 in depending on the size
Available Grades: 304, 304L, 316, 316L, 316LVM, 316Ti, 17-7PH
Surface Finish: polished or electropolished; internal Ra value can reach ≤0.2 µm
Form: straight lengths or coils; cut-to-length available
Production Method: cold drawing, plug drawing, seamless or welded-and-drawn processing
High corrosion resistance and excellent biocompatibility
Very tight dimensional control for OD/ID and wall uniformity
Smooth internal surfaces suitable for fluid and gas delivery
High straightness and consistency for precision assembly
Suitable for sterilization and repeated clinical use
Our production achieves extremely precise OD, ID, and wall thickness control, with tolerances up to ±0.01 mm, meeting demanding medical device requirements such as minimally invasive instruments and catheter systems.
All stainless steel materials are fully certified, traceable, and compliant with medical manufacturing standards. Each batch undergoes strict inspection to ensure consistency and purity.
Through precision drawing and electropolishing, tubing surfaces maintain minimal contamination and extremely low roughness, essential for medical fluid systems and surgical tools.
We can produce ultra-small inside diameters (as small as 0.13 mm) and ultra-thin walls using cold-drawing and plug-drawing technologies.
Custom lengths, bending, coiling, flaring, and end-forming are available. Outer diameters can be produced up to 20 mm for special medical assemblies.
Production aligns with ISO 13485 requirements, ensuring full documentation, traceability, and process control suitable for medical device manufacturing.
| Grade | C ≤ | Mn ≤ | P ≤ | S ≤ | Si ≤ | Cr (%) | Ni (%) | Mo (%) | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-11.0 | — | General medical grade |
| 304L | 0.035 | 2.0 | 0.045 | 0.030 | 1.0 | 18.0-20.0 | 8.0-13.0 | — | Low carbon version of 304 |
| 316 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | High corrosion resistance |
| 316L | 0.03 | 2.0 | 0.045 | 0.030 | 1.0 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | Low carbon grade for welding |
| 17-7PH | — | — | — | — | — | ~17.0 | ~7.0 | — | High-strength precipitation-hardening alloy |
| Grade | Yield Strength (0.2% min) | Tensile Strength (min) | Elongation (min) |
|---|---|---|---|
| 316 | ~205 MPa | ~515 MPa | ≥40% |
| 316L | ~170 MPa | ~485 MPa | ≥40% |
| 304 | ~205 MPa | ~515 MPa | Depends on temper |
| 17-7PH | Up to ~1,400 MPa (hardened) | — | — |
| 304L | Slightly lower than 304 | — | — |
Note: Cold-worked medical tubing can achieve significantly higher strengths than annealed sheet/bar material.
ASTM F2181 – Seamless stainless steel tubing for surgical implants
ASTM A269 – Seamless and welded austenitic stainless steel tubing
ISO 9626 – Stainless steel needle tubing for medical devices
ISO 13485 – Medical device quality management system
Designed for medical device manufacturing requiring miniature, high-precision, corrosion-resistant stainless steel tubing.
Catheter shafts, cannulas, and delivery systems
Hypodermic needles, syringe components, and micro-fluid channels
Surgical and minimally invasive instruments (endoscopic, arthroscopic, etc.)
Orthopedic and implantable device components
Diagnostic equipment fluid lines and analytical micro-tubing
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
