مكان المنشأ:
تشجيانغ/الصين
اسم العلامة التجارية:
TORICH
إصدار الشهادات:
ISO9001 ISO 14001 TS16949
رقم الموديل:
أستم B75 C12200
فيديو
فيديو

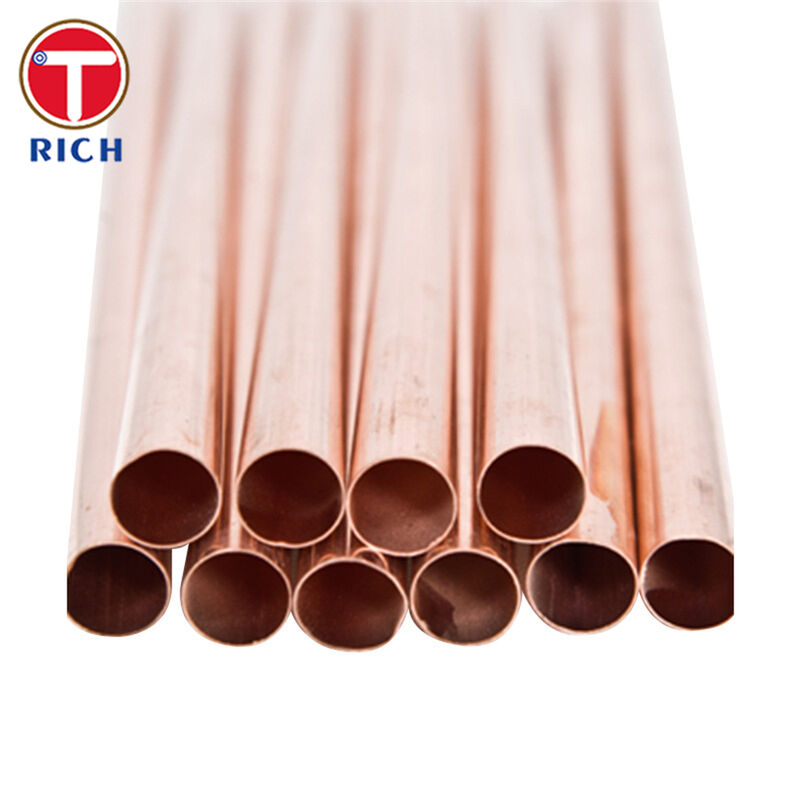

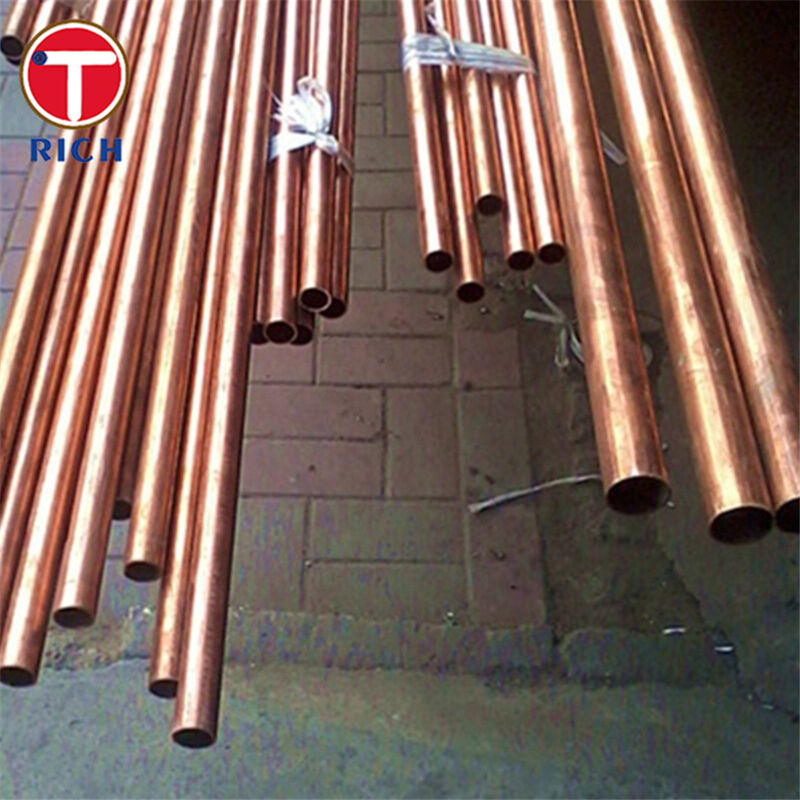

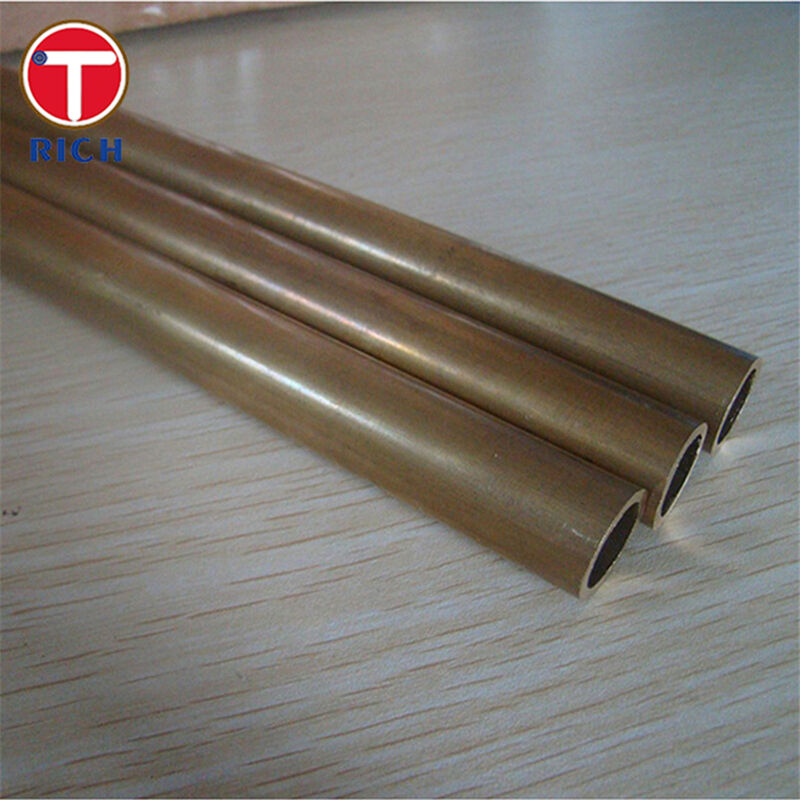

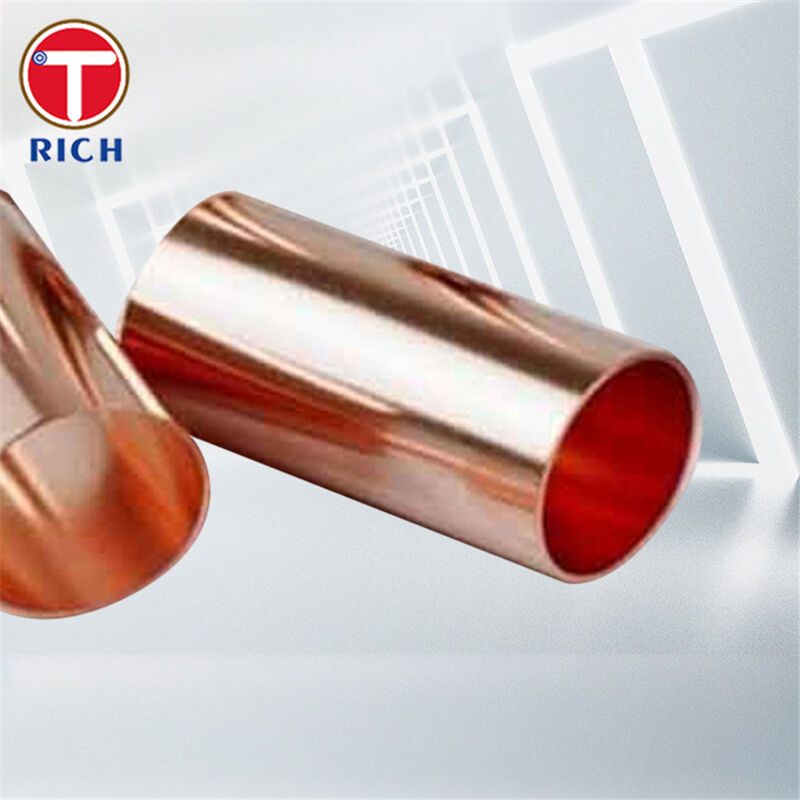

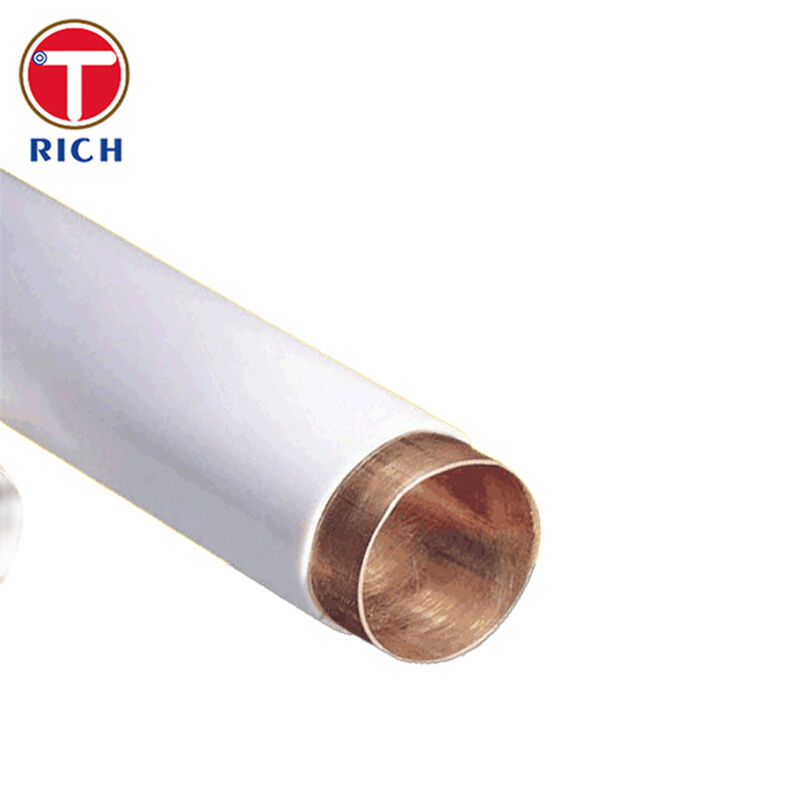

ASTM B75 C12200 copper alloy tube is a seamless, cold-drawn phosphorus-deoxidized copper (Cu-DHP) tube designed for general engineering service and particularly well suited for steam tracing and low- to medium-temperature steam lines.
The alloy (UNS C12200 / Cu-DHP) combines:
Very high copper purity (≥99.9% Cu including Ag) with 0.015–0.040% phosphorus as a deoxidizer, ensuring resistance to hydrogen embrittlement and good weldability.
Excellent thermal conductivity and good corrosion resistance in typical steam and condensate environments.
This makes it a robust and economical choice for steam tracing of process pipelines, valves, instruments and ancillary equipment.
Grade & Standard
Material: Phosphorus-deoxidized copper, high residual P (Cu-DHP)
UNS: C12200
Product form: Seamless copper tube
Governing standard: ASTM B75 / B75M – Seamless Copper Tube
Equivalent Designations (for reference)
EN: Cu-DHP, CW024A
JIS: C1220 (C1220T for tube)
GB: TP2 (phosphorus-deoxidized copper tube)
GOST: M1Ф-type deoxidized copper used in GOST 617 copper tubes
Manufacturing Process
Seamless, hot-worked and cold-drawn tube
Supplied either:
Fully annealed (soft coils / straight lengths)
Light-drawn or hard-drawn on request
Typical Dimensions for Steam Tracing
(Design-dependent; below are common tracer sizes)
Outside diameter (OD): 3/8" (9.52 mm), 1/2" (12.7 mm) commonly used; 1/4"–7/8" OD available
Wall thickness: Typically 0.9–1.2 mm for 3/8"–1/2" OD tracing tubes
Length:
Level-wound coils: up to 50–150 m per coil (typical)
Straight lengths: 3–6 m standard; custom on request
Delivery Condition & Finish
Temper: O60 (soft annealed) is preferred for steam tracing due to easy bending; hard tempers (H55/H80 etc.) available where higher strength is required
Ends: Plain ends, deburred; other end preparation upon request
Surface: Clean, bright or light oxide, internal cleanliness controlled for steam and condensate service
Optimized for Steam Tracing Temperatures
C12200 copper tube under ASTM B75 is widely used in fluid and steam lines and retains strength at elevated temperatures typical of low- and medium-pressure steam service.
Excellent Thermal Conductivity
High thermal conductivity (around 196 W/m·K) enables efficient heat transfer from steam to the traced line, reducing the number of tracers and steam consumption.
Resistance to Hydrogen Embrittlement
Phosphorus deoxidation minimizes dissolved oxygen and prevents “steam embrittlement” (hydrogen disease), a key requirement for copper in hot, moist service.
Strong Corrosion Resistance in Steam/Condensate
C12200 and related Cu-DHP alloys exhibit very good resistance to general corrosion and pitting in water, steam and many industrial atmospheres, supporting long service life in steam lines and tracers.
Easy Bending, Forming and Joining
Excellent cold-workability and brazing/soldering characteristics allow tight-radius bends, coiling around process pipe, and reliable joints (brazed, soldered, compression fittings).
Proven Standardized Quality
ASTM B75 specifies mechanical tests, hydrogen embrittlement testing, expansion tests and non-destructive (eddy-current / pressure) tests for copper tubes, ensuring consistent, traceable quality.
Cost-Effective vs Stainless for Moderate Conditions
For many designs, copper tracer tube is recommended for steam service up to about 400°F (204°C) where compatible with the medium, offering lower material and installation cost than stainless steel.
Based on common questions from engineers and buyers of steam tracing tubing, here is how this product and our supply approach address key concerns:
Engineering guidelines indicate copper tubing is suitable when saturated steam temperature does not exceed about 400°F (204°C) and when the process or environment is not aggressively corrosive.
Our C12200 tubes are supplied in wall thicknesses selected according to your design pressure and applicable piping codes; heavier walls can be provided for more severe thermal cycling as recommended by steam tracing best-practice documents.
What we offer
Application review (steam pressure, temperature, medium, environment) and guidance on when C12200 copper is ideal and when 316L stainless tracer tube is a better choice.
Wall-thickness selection and documentation to align with your internal standards and project specifications.
Design guides point out that copper is economical but corrosion products can contaminate traps and instruments if water chemistry is poor.
Our approach
We supply C12200 from controlled-chemistry Cu-DHP melts with very low impurity levels and proven service in steam, water, and heat-exchange systems.
On request, we can provide:
Pre-cleaned / internally cleaned tubes for critical steam/condensate systems
Guidance on compatibility with your condensate treatment program
Alternative 316L tracer solutions for highly corrosive or contaminated services
ASTM B75/B75M defines strict requirements for chemistry, mechanical properties, expansion tests, hydrogen embrittlement tests, and non-destructive testing of seamless copper tubes.
What we provide
Material test reports (EN 10204 3.1) including:
Chemical analysis (Cu, P and residuals)
Tensile test results and hardness
Expansion / flattening tests as required
Eddy-current or hydrostatic / pneumatic tests where specified
Full traceability by heat, coil and bundle, plus packaging and marking aligned with ASTM / customer specifications.
Steam tracing design guidelines emphasize the use of 3/8" and 1/2" OD copper or stainless tube in long continuous runs for efficient installation.
Our advantages here
Soft-annealed C12200 coils with excellent ductility (typical O60 tensile 220–260 MPa with ≥40% elongation) allow tight wraps around process lines without wrinkling.
Level-wound coils minimize joints and leak points, reducing installation time and maintenance risk.
Global projects often mix ASTM, EN, JIS, GB and GOST documentation. Cu-DHP / C12200 has well-established cross-references to CW024A, C1220 and TP2 and to Russian M1F-type coppers.
We support
Cross-standard mapping (ASTM ↔ EN ↔ JIS ↔ GB ↔ GOST) in datasheets and certificates
Mixed-standard marking if your documentation requires both UNS and local designations
| Grade | Standard / System | Typical Description | Cu (min, wt%) | P (wt%) | Notes |
|---|---|---|---|---|---|
| C12200 | ASTM (UNS) | Phosphorus-deoxidized copper, high residual P (Cu-DHP) | 99.9 (Cu+Ag) | 0.015–0.040 | Standard Cu-DHP for tubes, excellent for steam tracing applications. |
| C12000 | ASTM (UNS) | Phosphorus-deoxidized copper, low residual P (Cu-DLP) | 99.9 (Cu+Ag) | 0.004–0.012 | Higher conductivity, slightly lower residual P than C12200. |
| CW024A | EN 12449 | Phosphorus-deoxidized copper tube (Cu-DHP) | 99.9 (Cu+Ag) | 0.015–0.040 | Composition essentially aligned with C12200. |
| C1220 | JIS H3300/H3100 | Phosphorus-deoxidized copper | 99.9 | 0.015–0.040 | Widely used for HVAC and plumbing tubes. |
| TP2 | GB/T 5231 | Phosphorus-deoxidized copper | 99.9 (Cu+Ag) | 0.015–0.040 | Chinese grade directly cross-referenced to C12200 / C1220 / Cu-DHP. |
| Grade | Standard / Temper | Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A (%) | Hardness | Notes |
|---|---|---|---|---|---|---|
| C12200 | ASTM, soft O60 | 220–260 | ~70–90 (typical) | ≥40 | 50–70 HV | Typical values for soft O60 tubing. |
| C12000 | ASTM, soft O60 | 210–250 | ~65–85 (typical) | ≥35 | 45–65 HV | Slightly higher conductivity, similar strength to C12200. |
| CW024A | EN, tube R200 (annealed) | ≥200 | ≈80 (reference) | ≥40 | ≤110 HBW | EN Cu-DHP R200 data for tubes, t ≤20 mm. |
| C1220 | JIS, annealed (O) | ≥195 | – | ≥35 | – (soft) | Representative of annealed JIS C1220 tubes. |
| TP2 | GB, soft strip/tube | ≈195–250 (soft range) | – | ≈30–40 | 60–90 HV | Soft condition comparable to C12200/CW024A properties. |
ASTM (USA)
ASTM B75/B75M – Seamless Copper Tube (covers UNS C12000 and C12200).
ASTM B280 – Seamless copper tube for air conditioning and refrigeration (C12200).
ASTM B111 – Copper and copper alloy seamless condenser and heat-exchanger tubes.
EN (Europe)
EN 12449 – Copper and copper alloys – Seamless, round tubes for general purposes (Cu-DHP, CW024A).
EN 13600 / EN 1057 – Additional copper tube standards for electrical and plumbing applications.
GB (China)
GB/T 5231 – Designation and chemical composition of wrought copper and copper alloys (TP2).
GB/T 1527 – Drawn tube of copper and copper alloys.
GB/T 18033 – Seamless copper water and gas tubes.
JIS (Japan)
JIS H3300 – Copper and copper alloy seamless pipes and tubes (includes C1220T).
GOST (Russia / CIS)
GOST 617-2006 – Round copper and brass pipes for general use – Technical conditions (applies to copper pipes such as M1/M1Ф-type).
Thanks to high thermal conductivity, good corrosion resistance and excellent formability, C12200 / Cu-DHP tubes are widely used in:
Steam tracing and steam lines
Heat exchangers, condensers and evaporators
HVAC and refrigeration tubing
Hot and cold water distribution
Chemical and process plant piping (non-aggressive media)
Steam Tracing of Process Pipelines
Steam Lines for Utility Distribution
Valves, Instruments and Ancillary Equipment
Heat-Exchanger and Coil Applications
Building Services and HVAC Steam Uses
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
